Welcome to TFH Ltd

We specialise in providing Temporary Foundation

The NAL Temporary Foundation Systems are a range of highly stable concrete bases which secure all types and sizes of illuminated and non-illuminated posts which are required on a temporary basis.

All posts are locked in position with the unique retention socket system. This ensures that posts cannot be removed or rotated by unauthorised personnel. All electric cables enter and exit at the bottom of the bases when used with illuminated posts. The retention socket also allows posts to be easily unlocked and removed at the end of contracts, leaving them ready for stacking and storing or re-use with different posts. The foundations are rectangular in shape to ensure maximum stability.

They have two options of lifting available, two cast in lifting loops on top of the bases, and two forklift voids. This ensures the foundations can be easily transported to and around site. Foundations are manufactured with steel anchors to enable them to be bolted to the ground, if required. A wide range of standard sizes are available.

Products

Benefits

Electrical Cables consealed from public

No cutting of poles on site

Vandal proof

Simple to transport to and around site (two methods of lifting available)

Simple removal of post from base allows easy storage

Various base sizes available to suit site conditions

Highly visible with Reflective paint

High stability

Units can be bolted to ground

Posts locked securely in place with retaining bolts

Products

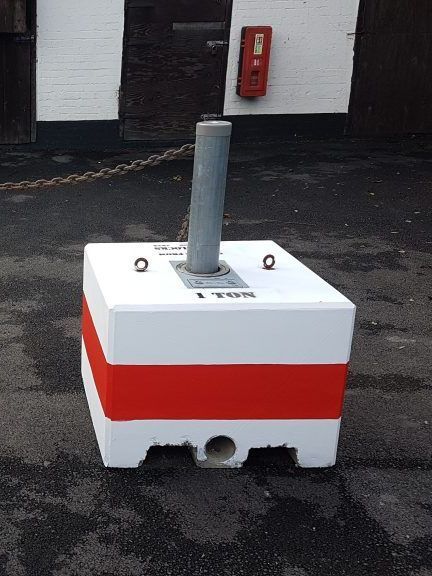

60mm post in Temporary Foundation

10mtr Street Lighting Column in Temporary Foundation

Products Ref	Dimensions of base L x B x H	Retention socket/ Post sizes	Method of lift	Weight of base

Signage Barriers	460 x 300 x 460	48mm dia 50x50mm 60mm dia 76x76mm 76mm dia 50x60mm	Lifting Loops	152Kg

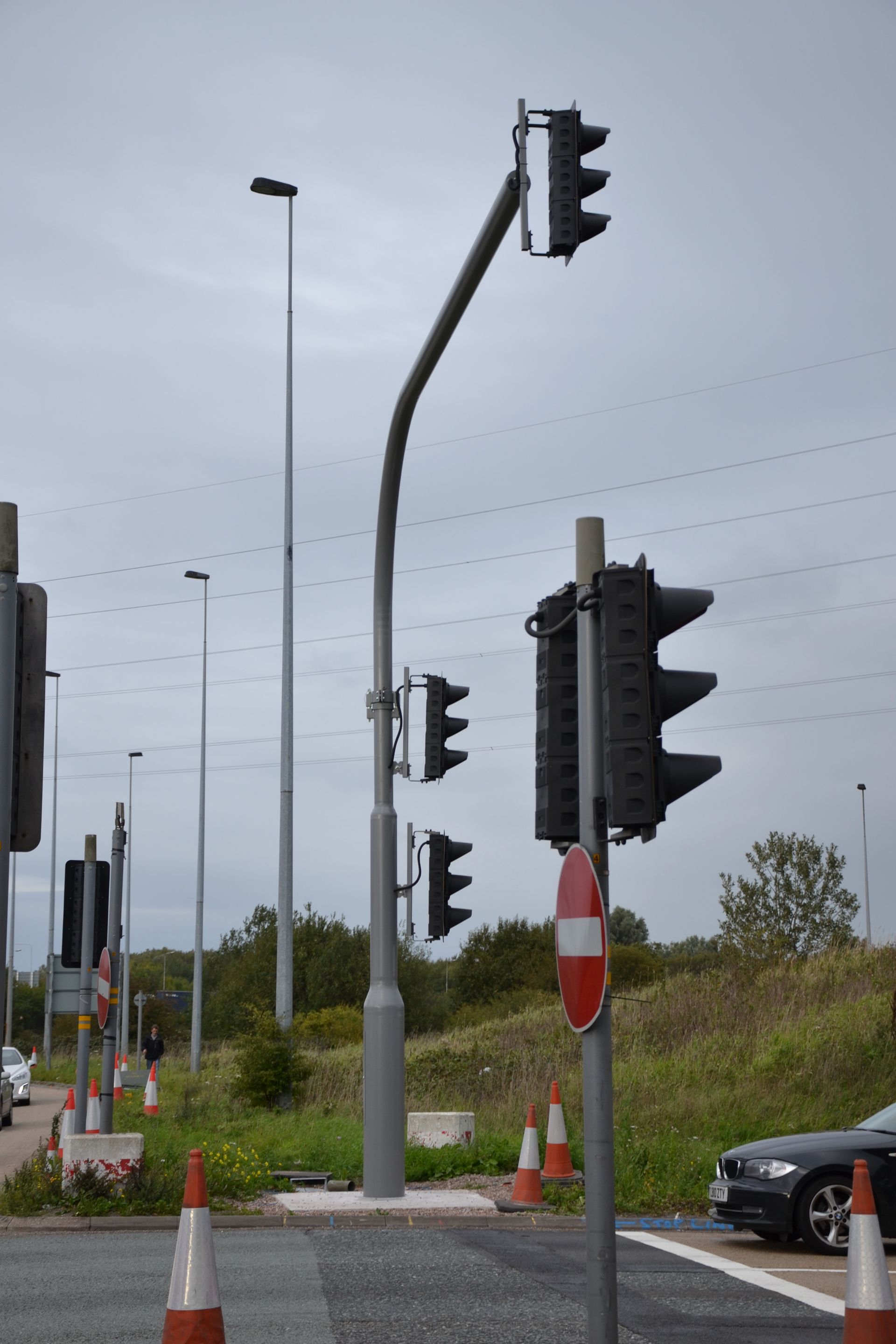

Traffic Signals	700 x 450 x 650	89mm dia 114mm dia 140mm dia 168mm dia	Lifting Loops and Forklift voids	500Kg
Signage Street Lighting	900 x 900 x 900	193mm dia 200mm dia	Lifting loops and Forklift voids	1750Kg
Street Lighting	1300 x 1300 x 600	193mm dia 200mm dia 219mm dia 250mm dia 273mm dia	Lifting loops and Forklift voids	2400Kg
	Bases can be manufactured to suit your specific requirements	Your specific post size	Lifting loops and Forklift voids	Depending on size

Temporary Retention socket base

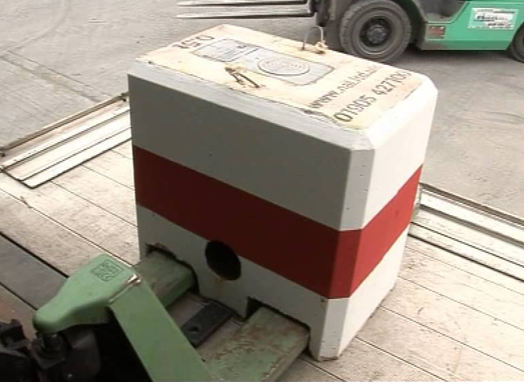

Forklift voids and ligting loops allow easy transportation	Ready for work	Fully re-usable and easy to stack and store

Posts are secured in Retention Socket		Traditional Pole and Barrel method
